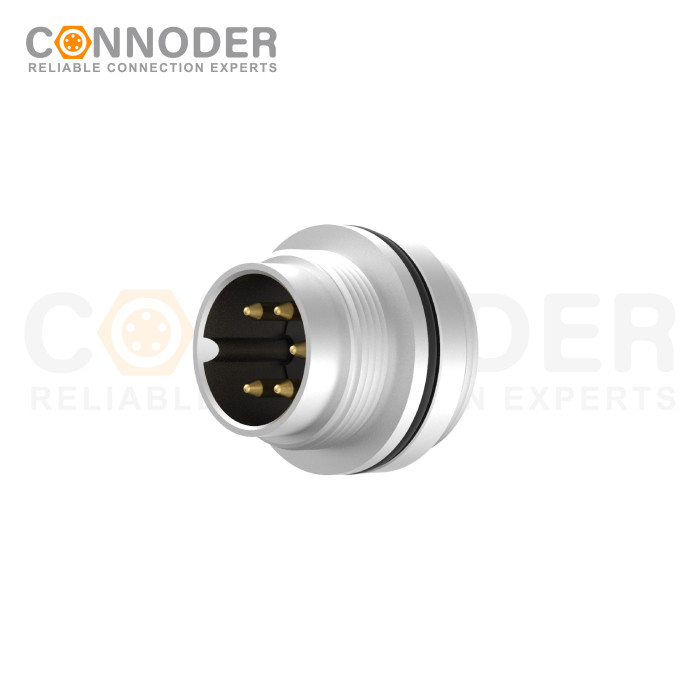

M16 Male Rear Fastened Nuts Welded Install Waterproof Metal Industrial Circular Connectors

Categories	M16 Circular Connector
Brand	Connoder Circular Connector Manufacturer
Model	MC16NM-05F2LSLNS401
Type	M16 Circular Connector
Contact Connection Type	Male Connector
Number OF Positions	2/3/4/5/6/8/12/14/16/19/24 Pin
Coding	General
Termination	Solder
Mounting Type	Rear Fastened
Shielded Option	Unshielded
Approval	UL
Pollution	III
Flame Retardant	IEC61076-2-111
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 5,2025

Detail Information

M16 Male Circular Connectors characteristic

Description

M16 Male Circular Connectors ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems.
M16 Male Circular Connectors are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design
Connoder M16 Male Circular Connectors series with rugged metal housing is the ideal solution to ensure uncompromised power and signal connections in harsh environments and industrial applications.
Connoder M16 Male Circular Connectors are manufactured according to the AISG standard (AISG C 485), which offers 2 to 24 contacts with dip soldering, crimp, screw clamp, solder and stranded wire, and is also available with moulded cable. Some versions are shieldable, and users can expect more than 500 mating cycles.

M16 Male Circular Connectors Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68

M16 Male Circular Connectors Size diagram

M16 Male Circular Connectors Electrical parameter:
