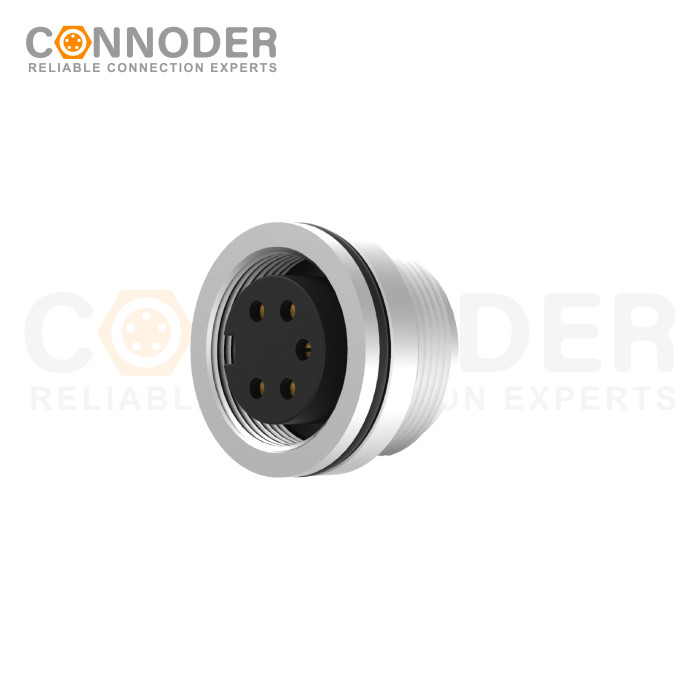

M16 Female Circular Connectors Plug Straight Solder Cable Rear Fastene Panel mount Connector(M18*0.75)

Categories	M16 Circular Connector
Brand	Connoder Circular Connector Manufacturer
Model	MC16NF-02F2LSLNS401
Type	M16 Circular Connector
Contact Connection Type	Female Connector
Number OF Positions	2/3/4/5/6/8/12/14/16/19/24 Pin
Coding	General
Termination	Solder
Mounting Type	Rear Fastened
Shielded Option	Unshielded
Approval	UL
Pollution	III
Flame Retardant	IEC61076-2-111
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 5,2025

Detail Information

M16 Female Circular Connectors characteristic

Description

M16 Female Circular Connectors assemblies are ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems.
M16 Female Circular Connectors are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design.
M16 Female Circular Connectors with IP67 rating, provides with 2, 3, 4, 5, 6, 7, 8, 12, 14, 16, 19, 24 contacts. Different pin matches specific applications. M16 Round Female Plug Connector series with rugged metal housing is the ideal solution to ensure uncompromised power and signal connections in harsh environments and industrial applications.

The primary use of M16 Female Circular Connectors is to build custom patch cords. Provide a quick disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port.
M16 Female Circular Connectors support higher bandwidth while providing an IP67 rated solution for demanding applications.

M16 Female Circular Connectors Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68

M16 Female Circular Connectors Size diagram

M16 Female Circular Connectors Electrical parameter:
