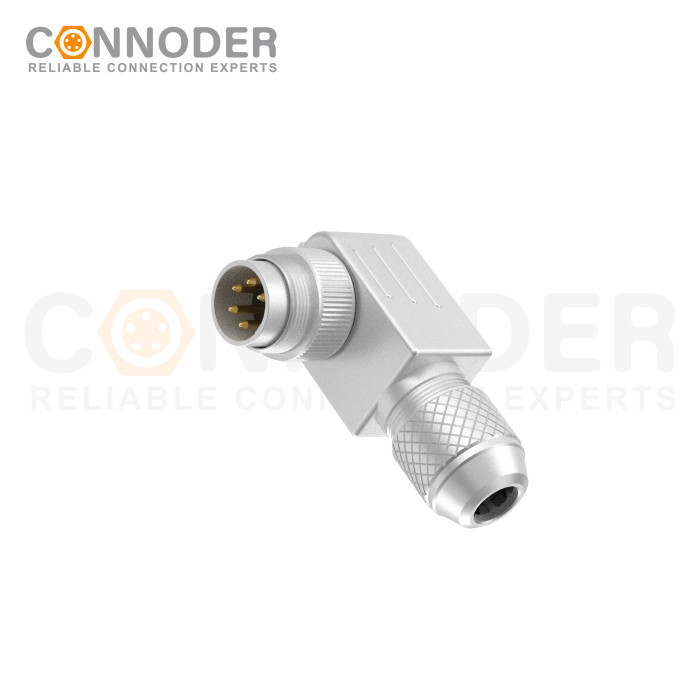

M16 Right Angled Metal Assembled Connector Shield 2 3 4 5 6 8 12 14 16 19 24 Pin Aviation Plug Connector

Categories	M16 Circular Connector
Brand	Connoder Circular Connector Manufacturer
Model	MC16NM-05U4LSANR401
Type	M16 Circular Connector
Contact Connection Type	Male Connector
Number OF Positions	2/3/4/5/6/8/12/14/16/19/24 Pin
Coding	General
Termination	Solder
Mounting Type	Metal Assembled
Shielded Option	Shielded
Approval	UL
Pollution	III
Flame Retardant	IEC61076-2-111
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 5,2025

Detail Information

M16 Right Angled Connector characteristic

Description

M16 Right Angled Connector ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems.
M16 Right Angled Connector are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design
Connoder M16 Right Angled Connector series with rugged metal housing is the ideal solution to ensure uncompromised power and signal connections in harsh environments and industrial applications.
Connoder M16 Right Angled Connector are manufactured according to the AISG standard (AISG C 485), which offers 2 to 24 contacts with dip soldering, crimp, screw clamp, solder and stranded wire, and is also available with moulded cable. Some versions are shieldable, and users can expect more than 500 mating cycles.

M16 Right Angled Connector Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68

M16 Right Angled Connector Size diagram

M16 Right Angled Connector Electrical parameter:
