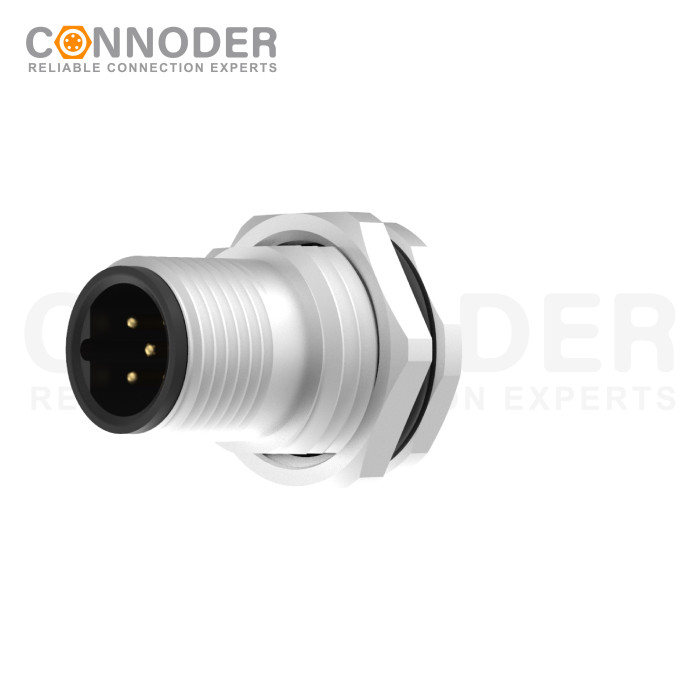

M12 Male Plug Industrial Connector Straight Soldering Backboard mounting Front Fastened Connector M16*1.5

Categories	M12 B Coded Connector
Brand	Connoder Circular Connector Manufacturer
Model	MC12BM-05R2LSLNS301
Type	M12 Circular Connector
Contact Connection Type	Male Connector
Number OF Positions	3 Pin（3/4/5Pin Optional）
Coding	B
Termination	Solder
Mounting Type	Front Fastened
Shielded Option	Unshielded
Approval	UL
Pollution	III
Flame Retardant	IEC61076-2-111
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 12,2025

Detail Information

M12 Male Plug Industrial Connector characteristic

Description

M12 Male Plug Industrial Connector usually have a protection rating of IP67 or even higher, are completely protected against dust ingress and can be immersed in water for short periods of time without damage. Shock and vibration resistant characteristics, reliability in the case of frequent vibration or subjected to physical shocks.
The M12 Male Plug Industrial Connectorr are specially designed for Profibus and other fieldbus systems, with a specific pin layout and coding mechanism to ensure the correct electrical connection and to avoid incorrect insertion of other types of plugs.The B-coding defines a 5-pole configuration, which is mainly used for Industrial Ethernet and related communication protocols, such as Profibus DP.
The M12 Male Plug Industrial Connector is known for its miniaturization, with an OD of only 12 mm, making it ideal for applications where space is limited. The M12 Male Plug Industrial Connector offers a variety of mounting options including, but not limited to, panel mounting, PCB board mounting, and wave soldering. Simplifying the assembly process and reducing overall costs.

M12 Male Plug Industrial Connector Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68

M12 Male Plug Industrial Connector Size diagram

M12 Male Plug Industrial Connector Electrical parameter:
