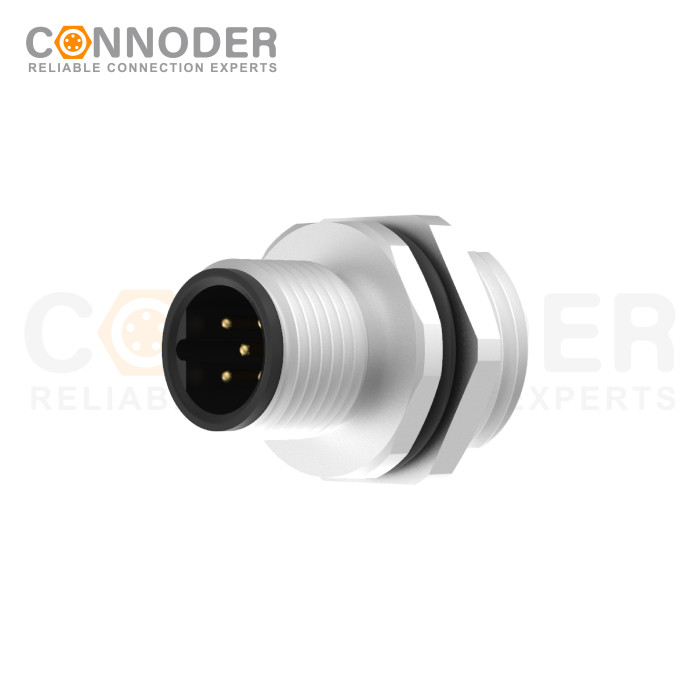

M12 5 Pin B Male Aviation Panel Mount Connector,Welded Plate Front Mounting (Rear Lock) Connector

Categories	M12 B Coded Connector
Brand	Connoder Circular Connector Manufacturer
Model	MC12BM-05F2LSLNS301
Type	M12 Circular Connector
Contact Connection Type	Male Connector
Number OF Positions	3 Pin（3/4/5Pin Optional）
Coding	B
Termination	Solder type
Mounting Type	Rear Fastened
Shielded Option	Unshielded
Approval	UL
Pollution	III
Flame Retardant	IEC61076-2-111
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 12,2025

Detail Information

M12 5 Pin Male Aviation Connector characteristic

Description

In the field of industrial automation and control, reliable connectivity solutions are key to ensuring efficient system operation. Connoder's M12 5 Pin Male Aviation Connector is a tailor-made, high-quality product. Its superior design, rugged materials and wide applicability make it ideal for a wide range of industrial applications.
The M12 5 Pin Male Aviation Connector comes in a standard 5-pin configuration and is designed for fieldbus communication, such as PROFIBUS and other industrial communication protocols. The design of B code not only ensures the correct connection direction, but also effectively prevents the wrong connection, thus improving the security and reliability of the system. Its compact structure makes it ideal for applications where space is limited, providing excellent mechanical and electrical properties.
The housing of the M12 5 Pin Male Aviation Connector is made of high-strength nylon or metal material with excellent impact resistance and corrosion resistance, which can maintain stable performance even under extreme operating conditions. The product meets the IP67 protection grade standard and can effectively resist the intrusion of dust and water, ensuring long-term reliable work in harsh environments. Its threaded coupling mechanism simplifies the installation process and ensures the firmness and durability of the connection.

M12 5 Pin Male Aviation Connector Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68

M12 5 Pin Male Aviation Connector Size diagram

M12 5 Pin Male Aviation Connector Electrical parameter:
