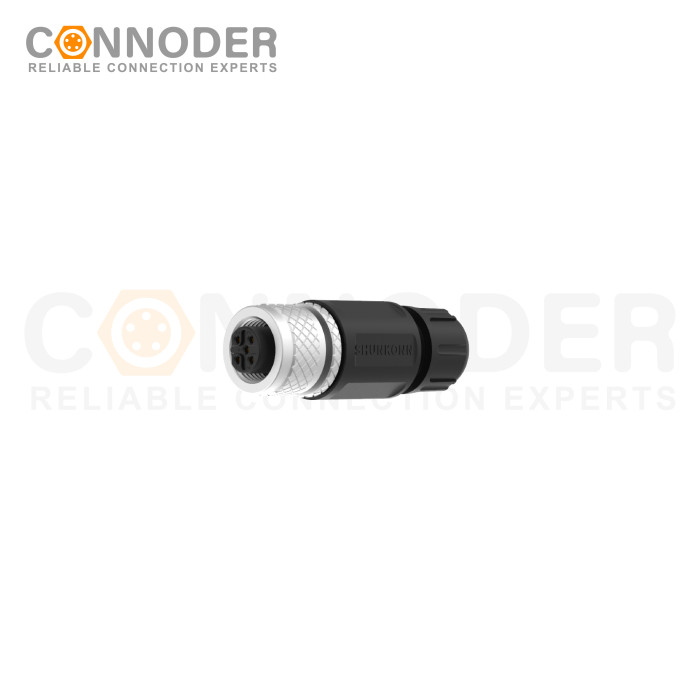

M12 B code Female Circular Connector-Field Wireable,Straight Plastic Assembled,Solder Connection,batch

Categories	M12 B Coded Connector
Brand	Connoder Circular Connector Manufacturer
Model	MC12BF-05N1LSMNS601
Type	M12 Circular Connector
Contact Connection Type	Female Connector
Number OF Positions	3 Pin（3/4/5Pin Optional）
Coding	B
Termination	Solder
Mounting Type	Straight Plastic Assembled
Shielded Option	Unshielded
Approval	UL
Pollution	III
Flame Retardant	IEC61076-2-111
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 12,2025

Detail Information

M12 Circular Connector characteristic

Description

M12 Field Wireable Connector offers a variety of polarity and coding options, including A-coding, B-coding, D-coding, and X-coding, to meet different connection requirements. For instance, A-coding is typically used for sensors, actuators, and power connections, B-coding for fieldbus connections, and D-coding and X-coding are often used for Ethernet and high-speed data transmission.
Pure copper gold-plated contacts with excellent electrical conductivity Fixed key position, multi-key position to prevent blindness, MIS insertion, skew insertion Strong waterproof performance, in line with IP67/IP68 waterproof requirements.
Thickened pins/long life Copper-zinc material, high resistance, wear resistance Threaded cable, easy to remove and plug, tightly combined, and not easy to fall off.
M12 Field Wireable connectors are available in a wide range of straight and Right angle, male and female, and plastic and metal versions.

M12 Circular Connector Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68

M12 Circular Connector Size diagram

M12 Circular Connector Electrical parameter:
