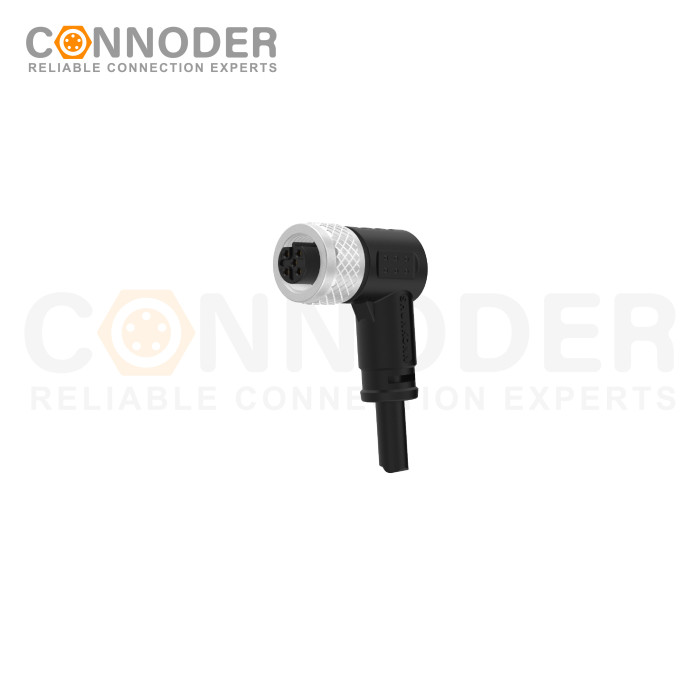

M12 B code Female Cable Connector-Right Angle Overmolded Cable,UL, PUR, black,Solder Connection,Custom
M12 B code Female Cable Connector-Right Angle Overmolded Cable,UL, PUR, black,Solder Connection,Custom
| Categories | M12 Connecting Cables |
|---|---|
| Brand | Connoder Circular Connector Manufacturer |
| Model | MB12BF-055LSRAXXXXX01 |
| Type | M12 Cable Connector |
| Contact Connection Type | Female Connector |
| Number OF Positions | 3 Pin（3/4/5Pin Optional） |
| Coding | B |
| Termination | Solder |
| Mounting Type | Overmolded Type |
| Shielded Option | Yes/No Optional |
| Approval | UL |
| Pollution | III |
| Flame Retardant | IEC61076-2-111 |
| Terms of Payment | L/C, D/A, D/P |
| Update Time | Apr 5,2025 |
Detail Information
M12 Circular Connector characteristic
Description
- M12 Overmolded Cable provide safe and reliable communication between devices and across networks within an industrial environment.
- Pure copper gold-plated contacts with excellent electrical conductivity Fixed key position, multi-key position to prevent blindness, MIS insertion, skew insertion Strong waterproof performance, in line with IP67/IP68 waterproof requirements.
- Thickened pins/long life Copper-zinc material, high resistance, wear resistance Threaded cable, easy to remove and plug, tightly combined, and not easy to fall off.
- M12 Overmolded Cable is available in two straight and right-angle versions.
M12 Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M12 Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MB12BF-035LSRAXXXXX01 | 3 | 4A | 250V | 250V | 22 | 0.34 | |
MB12BF-045LSRAXXXXX01 | 4 | 4A | 250V | 250V | 22 | 0.34 | |
MB12BF-055LSRAXXXXX01 | 5 | 4A | 60V | 60V | 22 | 0.34 | |
M12 Circular Connector Coding Parameter:
| Pins | 3B | 4B | 5B |
| Male |  |
 |
 |
| Pins | 3B | 4B | 5B |
| Female |  |
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 Circular Connector Wire Definition:
| Pins | 3 Pin Core Color | Pins | 4 Pin Core Color | Pins | 5 Pin Core Color | ||||||
| 1 | BN |  |
1 | BN | |
1 | BN | |
|||
| 2 | - |  |
2 | WH |  |
2 | WH | |
|||
| 3 | BU |  |
3 | BU | |
3 | BU | |
|||
| 4 | BK | 4 | BK | 4 | BK |  |
|||||
| 5 | GY |  |
|||||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
