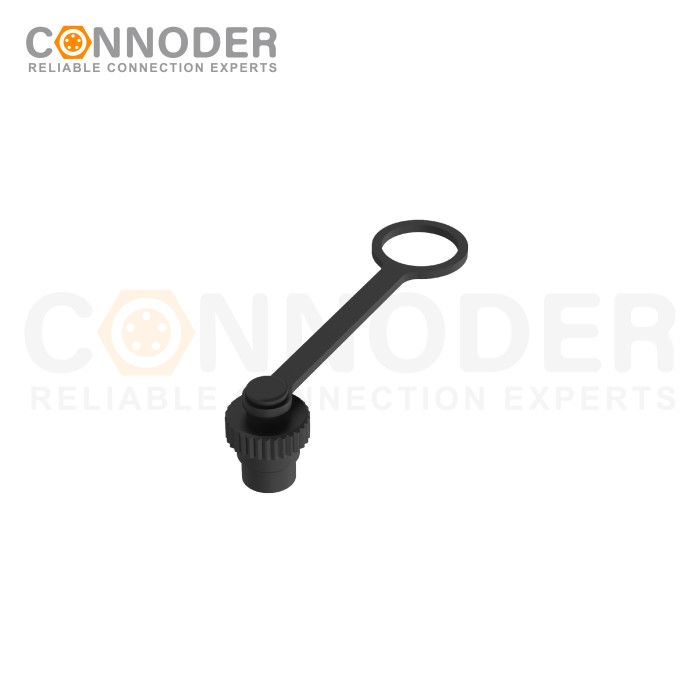

M9 Female connector Plastic dust cover,IP67 Locked state
M9 Female connector Plastic dust cover,IP67 Locked state
| Categories | Dust Protective Cap |
|---|---|
| Brand | Connoder Circular Connector Manufacturer |
| Type | M9 |
| Shell Material | PA+GF |
| Sealing Material | FKM(Fluorine rubber) |
| Sealing Ring | FKM(Fluorine rubber) |
| Applicable Temperature | -25℃ ~ +80℃ |
| Class of Protection | IP67 (Locked state) |
| Enforce Standards | IEC 61076-2-101 |
| Terms of Payment | L/C, D/A, D/P |
| Update Time | Apr 5,2025 |
Detail Information
M9 Female connector Plastic dust cover characteristic
Description
- Dustproof and waterproof: the protective cover has good sealing and reaches the protection level IP67, which can effectively prevent the entry of fine dust particles and prevent water intrusion under certain water pressure.
- Material quality: The protective cover is made of a durable material, rubber or plastic, with good weather resistance and resistance to chemical corrosion.
- Easy to use: The protective cover is simple in design for quick installation and removal, making it easier for users to connect or disconnect cables. The protective cover is equipped with a rubber chain device for easy carrying and storage, reducing the risk of loss.
M9 Female connector Plastic dust cover Specification
Type | M9 | |
Shell Material | PA+GF | |
Sealing Material | FKM(Fluorine rubber) | |
Sealing Ring | FKM(Fluorine rubber) | |
Applicable Temperature | -25℃ ~ +80℃ | |
Class of Protection | IP67 (Locked state) | |
Enforce Standards | IEC 61076-2-101 | |
M9 Female connector Plastic dust cover Size diagram
