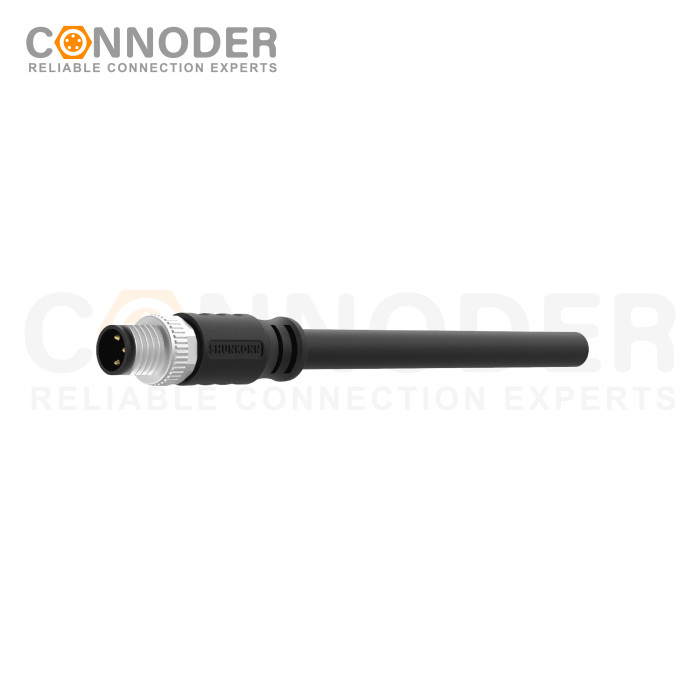

M8 Male Cable Connector-Straight Overmolded Cable,UL, PUR, black,Solder Connection,A code,
M8 Male Cable Connector-Straight Overmolded Cable,UL, PUR, black,Solder Connection,A code,
| Categories | M8 Sensor Connecting Cables |
|---|---|
| Brand | Connoder Circular Connector Manufacturer |
| Model | MB08AM-035LSSTXXXXX01 |
| Type | M8 Cable Connector |
| Contact Connection Type | Male Connector |
| Number OF Positions | 3 Pin（3/4/5/6/8 Pin Optional） |
| Coding | A |
| Termination | Solder |
| Mounting Type | Overmolded Type |
| Shielded Option | Yes/No Optional |
| Approval | UL |
| Pollution | III |
| Flame Retardant | IEC61076-2-111 |
| Terms of Payment | L/C, D/A, D/P |
| Update Time | Apr 5,2025 |
Detail Information
M8 sensor cables characteristic
Description
- M8 sensor cables are widely used in industrial automation, sensor and actuator systems for signal transmission or power supply.
- Needle number configuration: There are different needle number configurations 3, 4, 5, 6, 8, to adapt to different application requirements.
- Protection level: With high protection level IP67, able to work in harsh environments.
- Material choice: The connector housing may be made of plastic or metal, depending on the application requirements.
- Cable length and type: can be equipped with different lengths of cable, and can choose PVC, PUR and other materials of cable jacket, to meet the specific environment of oil resistance, wear resistance requirements.
M8 sensor cables Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M8 sensor cables Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MB08AM-035LSSTXXXXX01 | 3 | 3A | 60V | 60V | 24 | 0.25 | |
MB08AM-045LSSTXXXXX01 | 4 | 3A | 60V | 60V | 24 | 0.25 | |
MB08AM-065LSSTXXXXX01 | 6 | 1.5A | 30V | 30V | 26 | 0.14 | |
MB08AM-085LSSTXXXXX01 | 8 | 1.5A | 30V | 30V | 26 | 0.14 | |
M8 sensor cables Coding Parameter:
| Pins | 3A | 4A | 6A |
| Male |  |
 |
 |
| 8A | 5B | 4D | |
 |
 |
 |
|
| Pins | 3A | 4A | 6A |
| Female |  |
 |
 |
| 8A | 5B | 4D | |
 |
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M8 sensor cables Wire Definition:
| Pins | 3 Pin Core Color | Pins | 4 Pin A Core Color | Pins | 4 Pin D Core Color | |||
| 1 | BN |  |
1 | BN | |
1 | YE |  |
| 2 | - |  |
2 | WH |  |
2 | WH | |
| 3 | BU |  |
3 | BU | |
3 | OG |  |
| 4 | BK |  |
4 | BK | |
4 | BU | |
| - | ||||||||
| Pins | 5 Pin Core Color | Pins | 6 Pin Core Color | Pins | 8 Pin Core Color | |||
| 1 | BN | |
1 | BN | |
1 | WH | |
| 2 | WH | |
2 | WH | |
2 | BN | |
| 3 | BU | |
3 | BU | |
3 | GN |  |
| 4 | BK | |
4 | BK | |
4 | YE | |
| 5 | GY |  |
5 | GY | |
5 | GY | |
| 6 | PK |  |
6 | PK | |
|||
| 7 | BU | |
||||||
| 8 | RD |  |
||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M8 sensor cables Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
