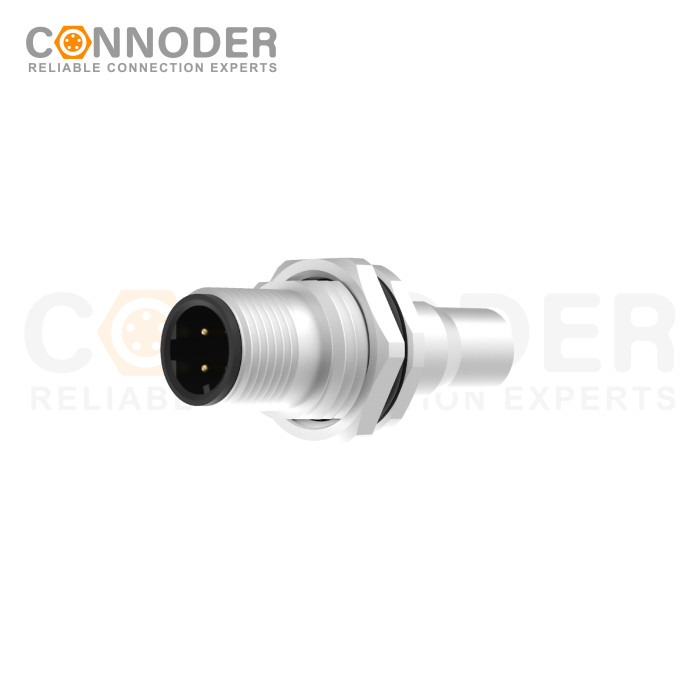

M12 D Code Male Circular Connector-Panel Mount,Solder Connection,M16x1.5, Front Fastened,Shielded

Categories	M12 D Coded Connector
Brand	Connoder Circular Connector Manufacturer
Model	MC12DM-04R2LSLLS301
Type	M12 Circular Connector
Contact Connection Type	Male Connector
Number OF Positions	4 Pin
Coding	D
Termination	Solder
Mounting Type	Front Fastened
Shielded Option	Shielded
Approval	UL
Pollution	III
Flame Retardant	IEC61076-2-111
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 12,2025

Detail Information

M12 Circular Connector characteristic

Description

M12 round connector provides multiple key control options (A, B, C, D, K, L, M, P, S, T, X, Y) and pins (2, 3, 4, 5, 6 , 8, 12, 17), ensure reliable connection and stable signal transmission.
Its compact design and high reliability are suitable for various applications such as industrial automation, robotics and process control.
The M12 circular connector is designed with a threading, which is easy to install and has IP67/IP68 waterproof level. Use national standard brass and thickened copper core to ensure excellent conductivity. Nickel -plated metal shells and wear -resistant nuts provide a firm connection, the contact is plated, and the life span is 500 times, and the contact resistance is low.

M12 Circular Connector Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68
