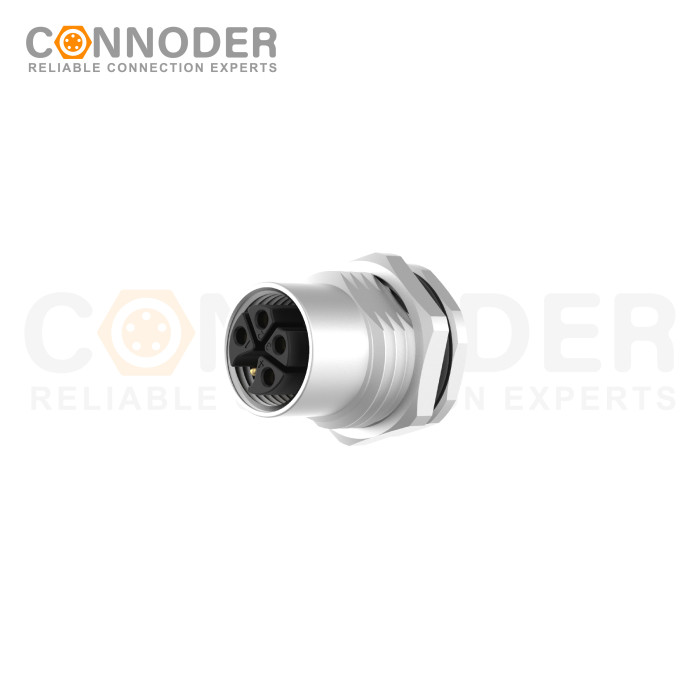

M12 K Code Female 4+PE Circular Connector-Panel Mount,Solder Connection,M16x1.5, Front Fastened

M12 K Code Female 4+PE Circular Connector-Panel Mount,Solder Connection,M16x1.5, Front Fastened

M12 K Code Female 4+PE Circular Connector-Panel Mount,Solder Connection,M16x1.5, Front Fastened
M12 K Code Female 4+PE Circular Connector-Panel Mount,Solder Connection,M16x1.5, Front FastenedM12 K Code Female 4+PE Circular Connector-Panel Mount,Solder Connection,M16x1.5, Front FastenedM12 K Code Female 4+PE Circular Connector-Panel Mount,Solder Connection,M16x1.5, Front FastenedM12 K Code Female 4+PE Circular Connector-Panel Mount,Solder Connection,M16x1.5, Front FastenedM12 K Code Female 4+PE Circular Connector-Panel Mount,Solder Connection,M16x1.5, Front Fastened
CategoriesM12 K Coded Connector
BrandConnoder Circular Connector Manufacturer
ModelMC12KF-05F2LSLNS301
TypeM12 Circular Connector
Contact Connection TypeFemale Connector
Number OF Positions2 Pin/2 Pin+PE/3 Pin+PE/4 Pin+PE
CodingK
TerminationSolder
Mounting TypeFront Fastened
Shielded OptionUnshielded
ApprovalUL
PollutionIII
Flame RetardantIEC61076-2-111
Terms of PaymentL/C, D/A, D/P
Update TimeApr 12,2025
Contact Now
Favorites
Detail Information
M12 K Coded Circular Connector characteristic
M12 Circular Connector
Description
  • Standards: M12 K code circular connectors follow specific standards, which allow them to provide higher current carrying capacity. Coded connectors can support voltages up to 800VAC/DC and currents up to 16A per pole for applications requiring high power inputs.
  • High-performance materials and design: Manufactured with high-quality materials, including gold-plated contacts and corrosion resistant housings. It not only improves the electrical conductivity, but also extends the service life of the connector and enhances its durability in harsh environments.
  • Protection level: IP67 level of protection, can effectively prevent dust from entering and resist underwater immersion in a short time.
  • Application scenario: Due to its powerful power transmission capability and rugged design, M12 K code circular connectors are widely used in servo drives, robotics, and other fields requiring high power input. Ideal for replacing traditional power interfaces, especially when space is limited.
  • Installation Flexibility: A variety of shape design options are available, including straight and angular shapes, to suit different installation needs. The most suitable product can be selected according to the specific application scenario, thus simplifying the installation process and improving the overall efficiency of the system.
M12 K Coded Circular Connector Specification
Shell Material
Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material
Epoxy Resin/Rubber
Contact Material
Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material
PA+PA+GF/TPU
Molding Material
TPU/PVC
Contact Resistance
≤5mΩ
Durability
≥ 500 Cycles
Insulation Resistance
100 MΩ
Applicable Temperature
-40℃ Tо +80℃
Waterproof Grade
IP67/IP68
M12 K Coded Circular Connector Size diagram
M12 Circular Connector Size diagram
M12 K Coded Circular Connector Electrical parameter:
Product model
Pins
Rated current
Rated voltage
Wire Gauge/Size
A/C
D/C
AWG
mm²
MC12KF-02F2LSLNS301
2
16A
800V
800V
16
2.5
MC12KF-03F2LSLNS301
2+PE
16A
800V
800V
16
2.5
MC12KF-04F2LSLNS301
3+PE
16A
800V
800V
16
2.5
MC12KF-05F2LSLNS301
4+PE
16A
800V
800V
16
2.5
M12 K Coded Circular Connector Coding Parameter:
Code Type Pins Male Female
S Code 2 M12 S Male 2Pin M12 S Female 2Pin
2+PE M12 S Male 2+PE M12 S Female 2+PE
3+PE M12 S Male 3+PE M12 S Female 3+PE
T Code 2 M12 T Male 2Pin M12 T Female 2Pin
2+PE M12 T Male 2+PE M12 T Female 2+PE
3+PE M12 T Female 3+PE
K Code 2 M12 K Male 2Pin M12 K Female 2Pin
2+PE M12 K Male 2+PE M12 K Female 2+PE
3+PE M12 K Male 3+PE M12 K Female 3+PE
4+PE M12 K Male 4+PE M12 K Female 4+PE
L Code 2 M12 L Male 2Pin M12 L Female 2
2+FE M12 L Male 2+PE M12 L Female 2+PE
3 M12 L Male 3Pin M12 L Female 3Pin
3+FE M12 L Male 3+PE M12 L Female 3+PE
4 M12 L Male 4Pin M12 L Female 4Pin
4+FE M12 L Male 4+PE M12 L Female 4+PE
M Code 2 M12 M Male 2Pin M12 M Female 2Pin
2+PE M12 M Male 2+PE M12 M Female 2+PE
3+PE M12 M Male 3+PE M12 M Female 3+PE
4+PE M12 M Male 4+PE M12 M Female 4+PE
5+PE M12 M Male 5+PE M12 M Female 5+PE
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 K Coded Circular Connector Wire Definition:
Pins 2+PE S Core Color Pins 4+PE S Core Color Pins 4Pin T Core Color
1 BK1 4 Pin Core Color 1 BK1 4 Pin Core Color 1 BN 4 Pin Core Color
2 BK2 4 Pin Core Color 2 BK2 4 Pin Core Color 2 WH 6 Pin Core Color
PE GNYE Image 3 BK3 4 Pin Core Color 3 BU 4 Pin Core Color
PE GNYE Image 4 BK 4 Pin Core Color
-
Pins 4/4+PE L Core Color Pins 4+PE K Core Color Pins 5+PE M Core Color
1 BN 4 Pin Core Color 1 BK1 4 Pin Core Color 1 BK1 4 Pin Core Color
2 WH 6 Pin Core Color 2 BK2 4 Pin Core Color 2 BK2 4 Pin Core Color
3 BU 4 Pin Core Color 3 BK3 4 Pin Core Color 3 BK3 4 Pin Core Color
4 BK 4 Pin Core Color 4 BK4 4 Pin Core Color 4 BK4 4 Pin Core Color
PE GY 6 Pin Core Color PE GNYE Image 5 BK5 4 Pin Core Color
PE GNYE Image
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
