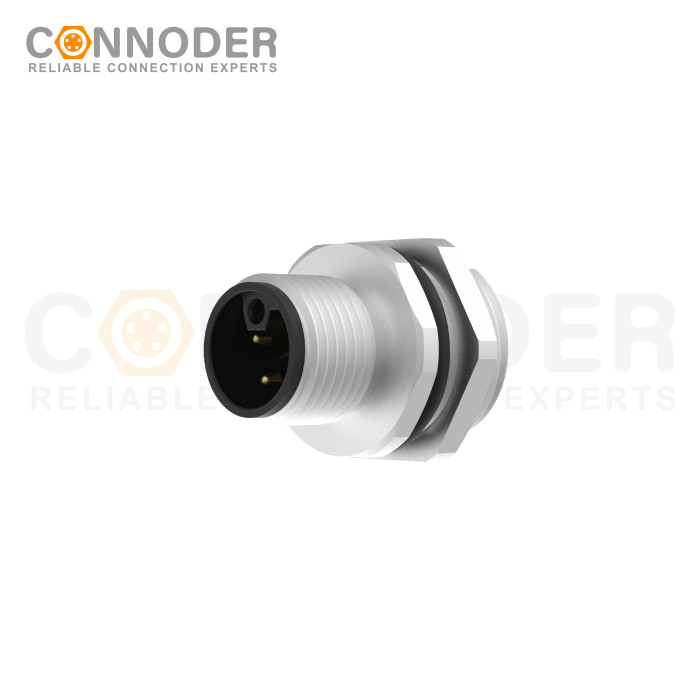

M12 L coded Male Circular Connector-Panel Mount,Solder Connection,M16x1.5, Rear Fastened

M12 L coded Male Circular Connector-Panel Mount,Solder Connection,M16x1.5, Rear Fastened

M12 L coded Male Circular Connector-Panel Mount,Solder Connection,M16x1.5, Rear Fastened
M12 L coded Male Circular Connector-Panel Mount,Solder Connection,M16x1.5, Rear FastenedM12 L coded Male Circular Connector-Panel Mount,Solder Connection,M16x1.5, Rear FastenedM12 L coded Male Circular Connector-Panel Mount,Solder Connection,M16x1.5, Rear FastenedM12 L coded Male Circular Connector-Panel Mount,Solder Connection,M16x1.5, Rear FastenedM12 L coded Male Circular Connector-Panel Mount,Solder Connection,M16x1.5, Rear Fastened
CategoriesM12 L Coded Connector
BrandConnoder Circular Connector Manufacturer
ModelMC12LM-04F2LSLNS301
TypeM12 Circular Connector
Contact Connection TypeMale Connector
Number OF Positions2/2+PE/3/3+PE/4/4+PE
CodingL
TerminationSolder
Mounting TypeRear Fastened
Shielded OptionUnshielded
ApprovalUL
PollutionIII
Flame RetardantIEC61076-2-111
Terms of PaymentL/C, D/A, D/P
Update TimeApr 12,2025
Contact Now
Favorites
Detail Information
M12 L coded Circular Connector characteristic
M12 Circular Connector
Description
  • High power transmission ‌ : M12 L Code Sensor connector are suitable for high power transmission, providing high current and high voltage power connections. Up to 16A per pin ‌ at 63V AC or DC voltage.
  • ‌ protection grade ‌ : IP67 or IP68 protection grade, can provide good sealing and protection in harsh environments ‌.
  • ‌ working environment ‌ : The working temperature range is -25°C to +85°C, the insulation resistance is 100Ω, the contact resistance is less than 5mΩ, suitable for various industrial automation applications .
  • Fast connection: M12 L Code Sensor connector adopts threaded connection mode, easy to plug and remove, which can effectively improve work efficiency.
  • Safe and reliable: The M12 L Code Sensor connector has an anti-insertion function, which can prevent incorrect insertion and ensure the correctness and reliability of the connection.
  • Multiple connection modes: The M12 L Code Sensor connector supports different connection modes, such as screw type and spring type, to meet the requirements of different application scenarios.
M12 L coded Circular Connector Specification
Shell Material
Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material
Epoxy Resin/Rubber
Contact Material
Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material
PA+PA+GF/TPU
Molding Material
TPU/PVC
Contact Resistance
≤5mΩ
Durability
≥ 500 Cycles
Insulation Resistance
100 MΩ
Applicable Temperature
-40℃ Tо +80℃
Waterproof Grade
IP67/IP68
M12 L coded Circular Connector Size diagram
M12 Circular Connector Size diagram
M12 L coded Circular Connector Electrical parameter:
Product model
Pins
Rated current
Rated voltage
Wire Gauge/Size
A/C
D/C
AWG
mm²
MC12LM-02F2LSLNS301
2
16A
63V
63V
14
2.5
MC12LM-03FF2LSLNS301
2+FE
16A
63V
63V
14
2.5
MC12LM-03F2LSLNS301
3
16A
63V
63V
14
2.5
MC12LM-04FF2LSLNS301
3+FE
16A
63V
63V
14
2.5
MC12LM-04F2LSLNS301
4
16A
63V
63V
14
2.5
MC12LM-05FF2LSLNS301
4+FE
16A
63V
63V
14
2.5
M12 L coded Circular Connector Coding Parameter:
Code Type Pins Male Female
S Code 2 M12 S Male 2Pin M12 S Female 2Pin
2+PE M12 S Male 2+PE M12 S Female 2+PE
3+PE M12 S Male 3+PE M12 S Female 3+PE
T Code 2 M12 T Male 2Pin M12 T Female 2Pin
2+PE M12 T Male 2+PE M12 T Female 2+PE
3+PE M12 T Female 3+PE
K Code 2 M12 K Male 2Pin M12 K Female 2Pin
2+PE M12 K Male 2+PE M12 K Female 2+PE
3+PE M12 K Male 3+PE M12 K Female 3+PE
4+PE M12 K Male 4+PE M12 K Female 4+PE
L Code 2 M12 L Male 2Pin M12 L Female 2
2+FE M12 L Male 2+PE M12 L Female 2+PE
3 M12 L Male 3Pin M12 L Female 3Pin
3+FE M12 L Male 3+PE M12 L Female 3+PE
4 M12 L Male 4Pin M12 L Female 4Pin
4+FE M12 L Male 4+PE M12 L Female 4+PE
M Code 2 M12 M Male 2Pin M12 M Female 2Pin
2+PE M12 M Male 2+PE M12 M Female 2+PE
3+PE M12 M Male 3+PE M12 M Female 3+PE
4+PE M12 M Male 4+PE M12 M Female 4+PE
5+PE M12 M Male 5+PE M12 M Female 5+PE
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 L coded Circular Connector Wire Definition:
Pins 2+PE S Core Color Pins 4+PE S Core Color Pins 4Pin T Core Color
1 BK1 4 Pin Core Color 1 BK1 4 Pin Core Color 1 BN 4 Pin Core Color
2 BK2 4 Pin Core Color 2 BK2 4 Pin Core Color 2 WH 6 Pin Core Color
PE GNYE Image 3 BK3 4 Pin Core Color 3 BU 4 Pin Core Color
PE GNYE Image 4 BK 4 Pin Core Color
-
Pins 4/4+PE L Core Color Pins 4+PE K Core Color Pins 5+PE M Core Color
1 BN 4 Pin Core Color 1 BK1 4 Pin Core Color 1 BK1 4 Pin Core Color
2 WH 6 Pin Core Color 2 BK2 4 Pin Core Color 2 BK2 4 Pin Core Color
3 BU 4 Pin Core Color 3 BK3 4 Pin Core Color 3 BK3 4 Pin Core Color
4 BK 4 Pin Core Color 4 BK4 4 Pin Core Color 4 BK4 4 Pin Core Color
PE GY 6 Pin Core Color PE GNYE Image 5 BK5 4 Pin Core Color
PE GNYE Image
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 L coded Circular Connector Application:
Industrial Automation
Industrial Automation

Food Packaging
Food Packaging

Warehousing Logistics
Warehousing Logistics

Automated Production
Automated Production
