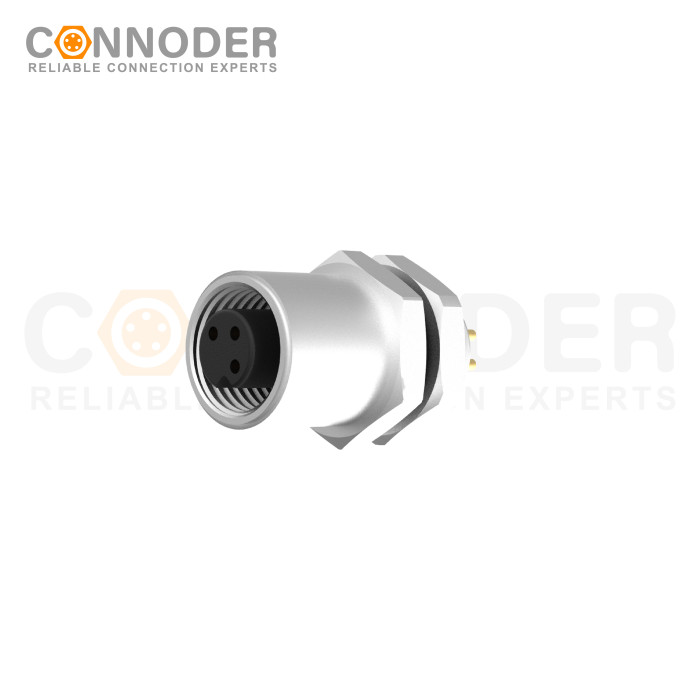

M5 3 Pin Circular Connectors Board Front Mount Female Socket PCB Style, Solder, Rear Fastened

Categories	M5 Circular Connector
Brand	Connoder Circular Connector Manufacturer
Model	MC05NF-03F2LDLNS1101
Type	M5Circular Connector
Contact Connection Type	Female Connector
Number OF Positions	3 Pin、4 Pin
Coding	A
Termination	PCB type
Mounting Type	Rear Fastened
Shielded Option	Unshielded
Approval	UL
Pollution	III
Flame Retardant	IEC 61076-2-105
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 5,2025

Detail Information

M5 Circular Connector characteristic

Description

Compact Design: M5 connectors are known for their small form factor (approximately 5mm OD), making them ideal for space-constrained application scenarios. The miniaturized design helps save valuable space while maintaining good electrical performance.
Rugged: Provide excellent mechanical strength and durability. They are typically equipped with metal housings and can achieve IP67 levels of protection for use in harsh environments, including resistance to dust ingress and short-term water submersion.
Easy to install: M5 connectors offer a variety of mounting options, including front panel mounting and rear panel mounting options.
Cable assemblies: In addition to individual connectors, pre-assembled M5 cable assemblies are available, which can be customized in length and configuration to meet specific customer needs.
Wide range of application scenarios: M5 connectors are used in a wide range of industries, including but not limited to industrial automation, robotics, automotive manufacturing, and medical devices.

M5 Circular Connector Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68

M5 Circular Connector Size diagram

M5 Circular Connector Electrical parameter:
