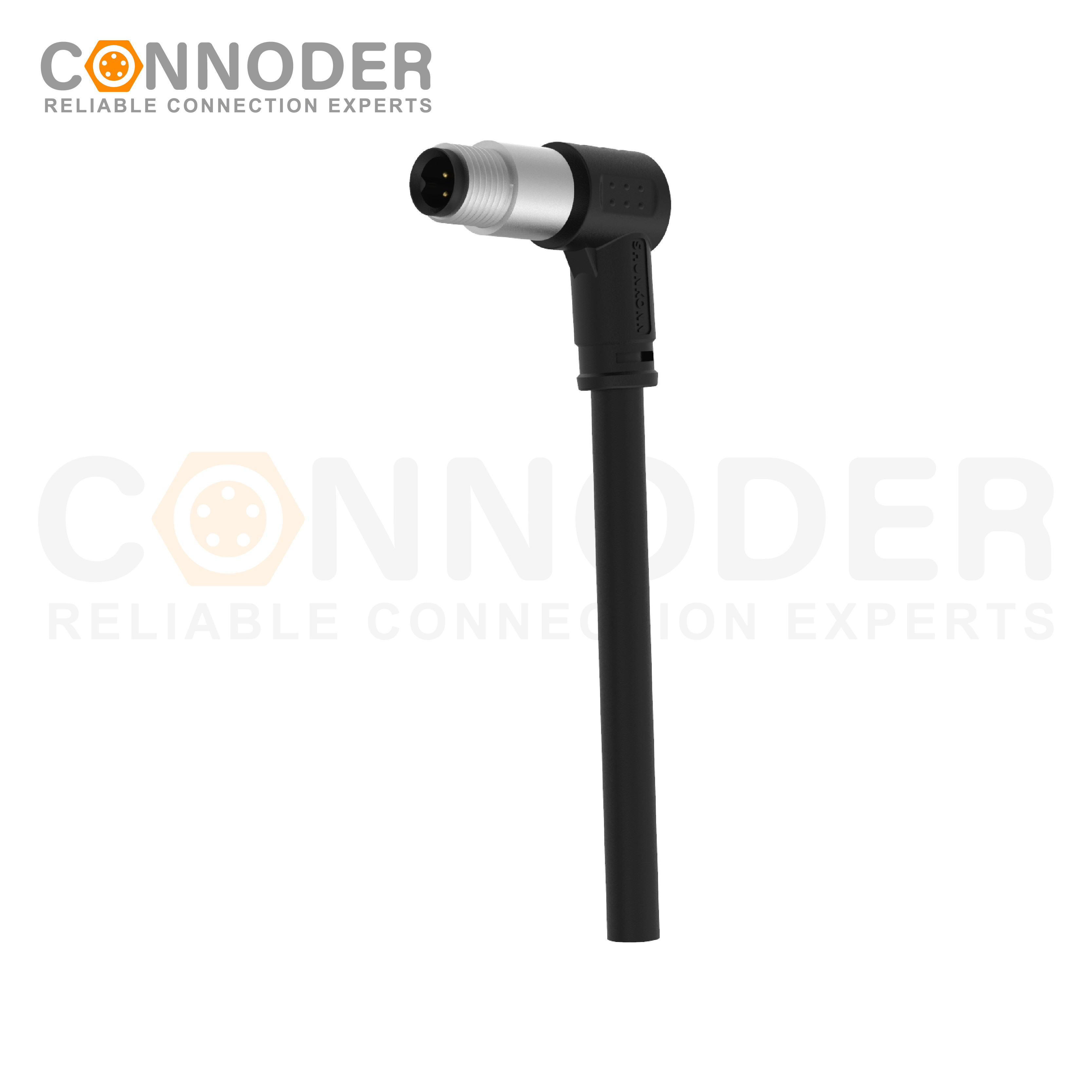

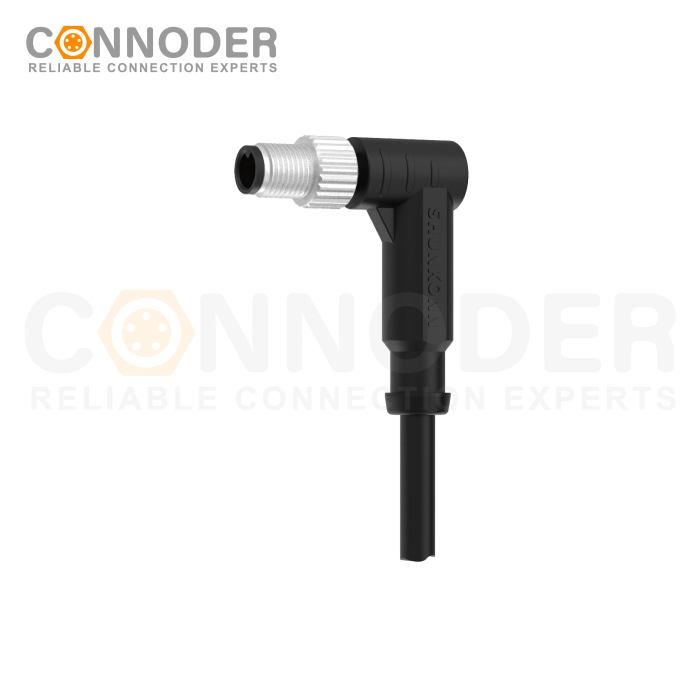

M5 Male Sensor Connecting-Right Angle Overmolded Cable,UL, PUR, black,Solder Connection,A code
M5 Male Sensor Connecting-Right Angle Overmolded Cable,UL, PUR, black,Solder Connection,A code
| Categories | M5 Sensor Connecting Cables |
|---|---|
| Brand | Connoder Circular Connector Manufacturer |
| Model | MB05NM-035LSRAXXXXX01 |
| Type | M5 Cable Connector |
| Contact Connection Type | Male Connector |
| M5 Cable Connector | 3 Pin/4 Pin |
| Coding | A |
| 3 Pin/4 Pin | Solder |
| Mounting Type | Overmolded Type |
| Shielded Option | Yes/No Optional |
| Approval | UL |
| Pollution | III |
| Flame Retardant | IEC61076-2-111 |
| Terms of Payment | L/C, D/A, D/P |
| Update Time | Apr 5,2025 |
Detail Information
M5 Sensor Cables characteristic
Description
- The M5 sensor connection cable plays an important role in many fields due to its compact design, excellent water resistance and strong anti-interference capability.
- Size and interface type: The M5 sensor connection cable is named for its thread diameter, which is 5 mm. It is designed with circular connectors and has a specific number of pins (such as 3 or 4 pins) to adapt to different sensors and application scenarios.
- Waterproof performance: 5 Sensor connection cables have good waterproof performance, suitable for use in outdoor or humid environments.
- Shielding performance: The M5 sensor connection cable is equipped with a premium shielding layer. Helps protect signal integrity.
- Customization options: M5 sensor connection cables are available in different lengths, colors, and terminations (such as panel mount). Different types of cable materials can also be selected to adapt to specific working environments, such as oil resistance, chemical corrosion resistance and other characteristics.
M5 Sensor Cables Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+GF/TPU | |
Molding Material | PVC/PUR | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M5 Sensor Cables Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MB05NM-035LSRAXXXXX01 | 3 | 1A | 60V | 60V | 24 | 0.14 | |
MB05NM-045LSRAXXXXX01 | 4 | 1A | 60V | 60V | 24 | 0.14 | |
M5 Sensor Cables Coding Parameter:
| Pins | 3 | 4 | Pins | 3 | 4 |
| Male |  |
 |
Female |  |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M5 Sensor Cables Wire Definition:
| Pins | 3 Pin Core Color | Pins | 4 Pin Core Color | ||
| 1 | BN |  |
1 | BN | |
| 2 | - |  |
2 | WH |  |
| 3 | BU |  |
3 | BU | |
| 4 | BK |  |
4 | BK | |
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M5 Sensor Cables Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
