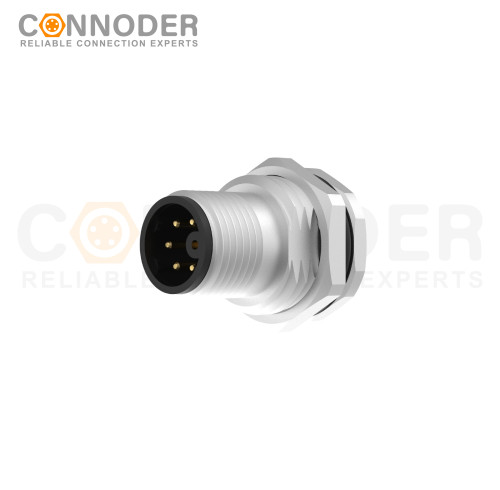

M12 M Coded Connector

The M12M coded circular connector is a professional-grade connector designed to meet the needs of efficient and reliable power transmission in industrial environments. The connectors are IEC 61066-2-111 compliant and have rated voltages up to 630V and rated currents of 8A, making them ideal for three-phase motors and other automation equipment.
High power carrying capacity: Support up to 630V AC and 8A current for applications requiring efficient power transmission.
Multiple pin configurations: Available in a variety of pin number configurations including 2-pin, 2+PE, 3+PE, 4+PE and 5+PE to suit different electrical requirements.
Rugged design: At least IP67 protection to ensure reliable performance in harsh environments.

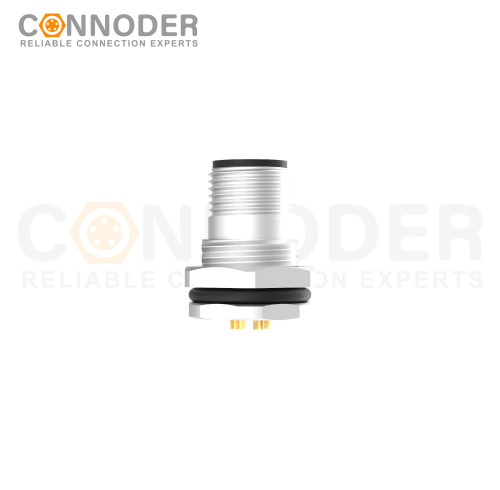

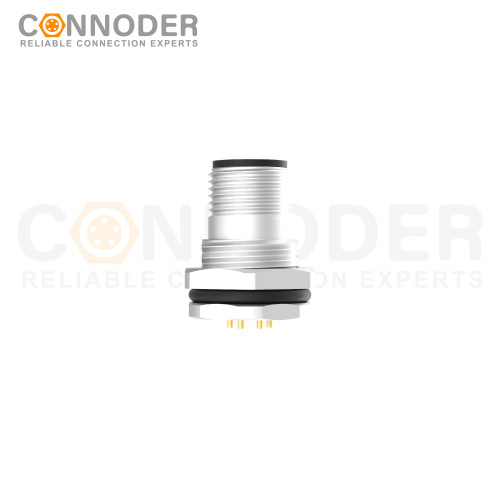

Flexible mounting options: Panel mount versions are available in front - and rear-mount options, with a variety of termination options, including welded, pre-laid and PCB types.
Customized services: Cable material, length, lock size, conductor size, line definition and cable color parameters can be customized according to customer requirements to ensure the best match.
The M12M coded circular connectors offered by Connoder are not limited to standard products, but can also be customized according to the specific needs of customers. Whether it's special cable lengths, unique locking mechanisms, or specific conductor sizes,
For information about M12M coded circular connectors or any customization requests, please feel free to contact us at the following!
